PVC Horizontal Crusher / Profile Pipe Crusher
Eliminate pre-cutting labor with our PVC Horizontal Crusher. Designed for long pipes and profiles, it ensures continuous, automated recycling for maximum efficiency.
No Pre-Cutting Needed
Horizontally feeds full-length pipes and profiles (up to 6m) directly, saving labor and time.
Automatic Feeding System
Driven rollers or hydraulic ram pull material into the rotor at a controlled rate to prevent motor overload.
V-Cut Technology
The V-shaped rotor geometry ensures a scissor-like cut, reducing energy consumption and dust generation.
Heavy-Duty Construction
Welded steel cutting chamber and outboard bearings designed for long service life and easy maintenance.
Horizontal Crusher in Action
Watch how the horizontal crusher effortlessly processes long PVC pipes. The automatic feeding system pulls the pipe in, while the heavy-duty rotor shears it into uniform granules instantly.
- Automatic feeding of 6-meter pipes.
- Consistent granule size with minimal dust.
- Safe and quiet operation.
Automated Recycling for Long Profiles
The REPOLYX Horizontal Crusher series revolutionizes the way manufacturers handle production waste. By eliminating the manual sawing step, you significantly reduce labor costs and improve plant safety. The machine features a low-level feeding trough that makes loading easy for operators or conveyor systems. The robust cutting chamber is equipped with external bearings to prevent dust contamination and overheating, ensuring 24/7 reliability in demanding production environments.
Rotor Type
V-Cut Open Rotor / Solid Rotor (Optional)
Blade Material
SKD-11 / D2 Tool Steel
Feeding Method
Horizontal Automatic Feeding
Safety Features
Emergency stop, overload protection, and safety interlocks on all access doors.
A Critical Step in Pipe Extrusion Lines
- Input: Long PVC pipes, window profiles, siding, and gutters
- Process: Horizontal feeding, shearing, and granulation
- Output: Consistent 8-12mm regrind for direct re-extrusion
Models Available
6 Sizes (560 to 1300 series)
Capacity Range
250 kg/h - 1200 kg/h
Pipe Handling
Diameters from 110mm up to 630mm+
Motor Power
22kW to 110kW options
Blade Adjustment
External pre-setting jig included
Screen Size
8mm, 10mm, 12mm (Customizable)
Cooling System
Optional water cooling for rotor and chamber
Discharge

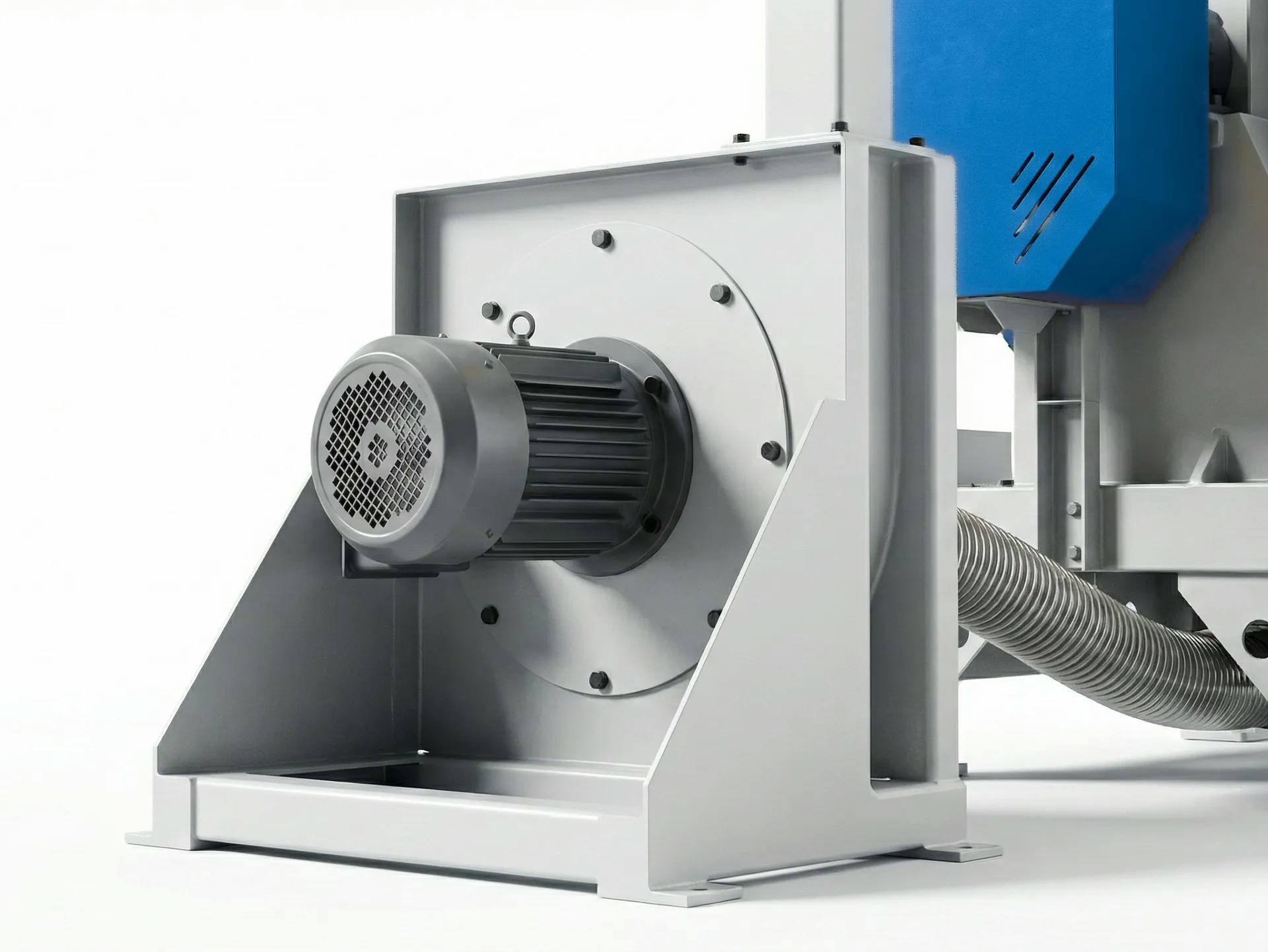

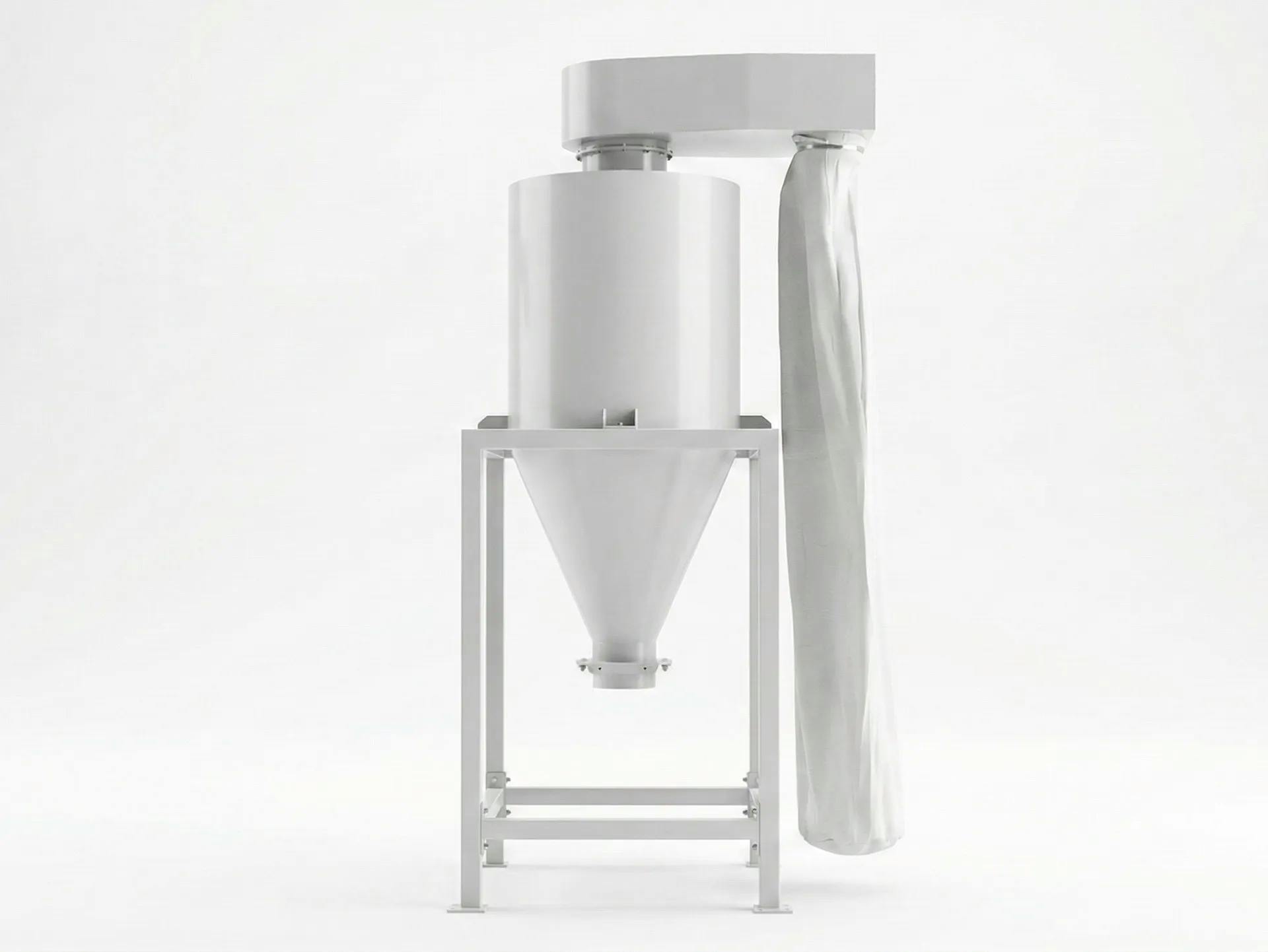

Blower system with cyclone included
| Model | Power (kW) | Fixed Blades | Moving Blades | Rotation Dia. (mm) | Box Opening Power (kW) | Blower Power (kW) | Silo Vol. (m³) | Capacity (kg/h) |
|---|---|---|---|---|---|---|---|---|
| 560 | 22 | 2 | 10 | 500 | 0.37 | 3 | 0.3 | 250 |
| 630 | 37 | 4 | 10 | 550 | 0.37 | 4 | 0.5 | 350 |
| 730 | 55 | 4 | 10 | 600 | 0.37 | 5.5 | 0.5 | 450 |
| 830 | 75 | 4 | 10 | 800 | 0.55 | 11 | 1 | 700 |
| 1000 | 90 | 4 | 10 | 900 | 0.75 | 15 | 1 | 850 |
| 1300 | 110 | 6 | 10 | 1200 | 1 | 18.5 | 2 | 1200 |
Comprehensive Warranty and Lifetime Support: Your Success is Our Priority
Your investment in a Repolyx Systems crusher is backed by our commitment to performance and reliability. We provide robust coverage and responsive service to keep your operation running at peak efficiency.
Standard 1‑Year Ironclad Warranty
Full 12‑month coverage on major components and workmanship.
Customizable Extended Coverage
Flexible options for motors, bearings, hydraulics, and control systems.
24/7 Priority Technical Support
Remote troubleshooting and operating guidance when you need it.
On‑Site Service & Professional Training
Commissioning, maintenance training, and preventative health checks.
Designed for Long & Tough Materials
The perfect solution for manufacturers of pipes and profiles.
PVC Pipes
Water pipes, drainage pipes, and conduit up to 630mm diameter.
Window Profiles
PVC/UPVC window and door frames, including off-cuts.
Gutters & Siding
Long extrusion products and vinyl siding panels.
Plastic Sheets
Corrugated sheets and flat panels fed via roll feeder.
Do I need to cut the pipes before shredding?
No, that is the main advantage of this machine. The horizontal feeding trough allows you to feed whole 6-meter lengths directly.
Can it handle heavy-walled pipes?
Yes, the 830, 1000, and 1300 models are designed for heavy-duty applications, including thick-walled sewage and pressure pipes.
How are the blades adjusted?
The machine features an external blade adjustment system, allowing you to pre-set spare blades in a jig for quick changeovers, minimizing downtime.
What is the noise level?
The machine is fully soundproofed with an insulated hopper and enclosure, keeping noise levels well below industrial standards (<85 dB).
