PET Bottle Washing Line
Scale PET recycling with a turnkey PET bottle washing line engineered for stable flake quality, low moisture, and high throughput.
- Feedstock: baled post‑consumer PET bottles (caps/labels included)
- Capacity: 500 / 1,000 / 1,500 / 2,000+ kg/h
- Output: high‑purity rPET flakes ready for fiber‑grade use or bottle‑to‑bottle (with SSP)
Get module details in our complete PET washing line guide.
Maximize ROI with High Purity
Achieve >99% PET purity by effectively removing PVC, caps, labels, and glues, enabling higher resale value.
Energy-Efficient Drying
Integrated high-speed dewatering and thermal drying systems ensure final moisture content ≤0.5%.
Automated Operation
Smart HMI control panel reduces labor costs and ensures consistent process stability 24/7.
Robust Build Quality
Constructed with 304 stainless steel and heavy-duty components for long operational life and minimal downtime.
Watch the PET Washing Line in Action
See our turnkey **PET bottle washing line** transforming dirty bales into clean flakes. Witness every stage of the automated process: debaling, sorting, crushing, washing, and drying. Our system guarantees high throughput and consistent quality.
- Effective float-sink separation for high purity.
- Energy-efficient hot washing and drying.
- User-friendly HMI for easy operation and monitoring.
Comprehensive PET Recycling Process
Our PET bottle washing line is engineered to handle the toughest recycling challenges—from heavily contaminated bales to mixed-color bottles. By combining advanced mechanical crushing, hydrodynamic separation, and hot chemical washing, we remove 99%+ of impurities (including PVC, labels, caps, glue, and oil).
Each system is customized to your specific feedstock quality and output requirements. Whether for fiber-grade or bottle-to-bottle applications, our solution delivers consistent, high-quality rPET flakes that command premium market prices.
Efficient Debaling & Sorting

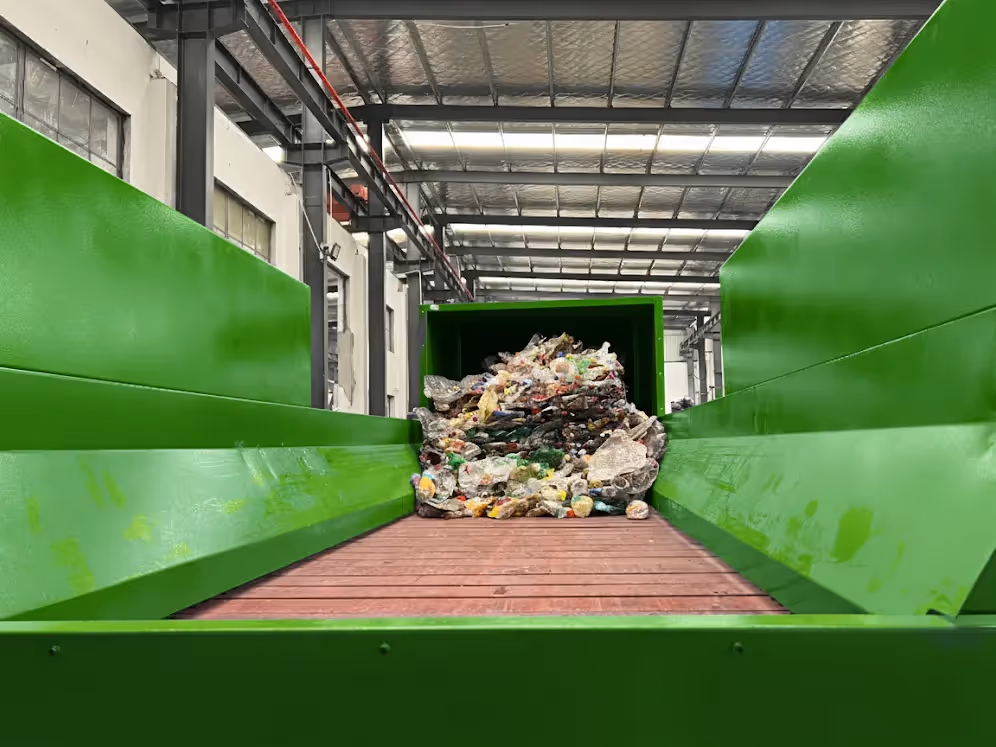

Debaler breaks compressed bales; trommel screen removes fines, sand, and small contaminants before crushing.
Precision Wet Granulation
Heavy-duty granulator with water spray produces uniform 12–18 mm flakes while minimizing fines and friction heat.
Advanced Separation Technology
Zig-zag air classifier removes light labels; float-sink tanks efficiently separate PET from PP/PE caps.
Hot & Friction Washing
Intensive hot wash with chemicals removes stubborn glues/grease; high-speed friction washer polishes flakes.
Typical line position
- Upstream: bale opening & pre‑sorting → trommel pre‑wash → wet crushing via Industrial Plastic Crusher
- Downstream: hot wash & separation → dewatering & thermal drying → product silo → flake bagging / SSP / pelletizing (application‑dependent)
Input Material
Baled post‑consumer PET bottles (clear/mixed) with caps/labels.
Flake Output Size
12–18 mm (adjustable screen in wet granulator).
Final Moisture Content
≤0.5% guaranteed after thermal drying.
Target Flake Purity
≥99% PET (depending on input quality).
Smart Control System
Central PLC/HMI panel with touchscreen, VFDs, and localized emergency stops.
Water Efficiency
Closed‑loop filtration system significantly reduces fresh water consumption.
Durable Construction
All water-contact parts made of SUS304 stainless steel for corrosion resistance.
Versatile Downstream
Seamless integration with pelletizing, extrusion, or SSP systems.
| Input Capacity (kg/h) | Dimensions (L×W×H, m) | Operators | Install Power (kW) | Water Cycle (T/h) |
|---|---|---|---|---|
| 500 | 45 × 15 × 6 | 4–5 | 180 | 3 |
| 1,000 | 50 × 15 × 6 | 5–6 | 299 | 4 |
| 1,500 | 55 × 16 × 6 | 6–8 | 370 | 6 |
| 2,000 | 60 × 18 × 6 | 8–10 | 450 | 8 |
Comprehensive Warranty and Lifetime Support
Every Repolyx Systems system is backed by our commitment to long‑term performance. Protect your investment with robust warranty coverage and responsive expert support.
Standard 1‑Year Warranty
12‑month coverage on major components and workmanship for peace of mind.
Flexible Extensions
Extend coverage for critical elements like motors, control systems, and bearings.
24/7 Technical Support
Round‑the‑clock assistance for troubleshooting, operation, and maintenance planning.
On‑Site Service & Training
Professional installation, commissioning, and operator training for optimal performance.
Genuine OEM Parts
Rapid availability of certified spares to sustain uptime and quality.
Targeted PET Applications
Specialized for post-consumer and post-industrial PET recycling.
PET Bottles
Post-consumer beverage bottles, water bottles, and oil bottles.
Thermoforms
PET clamshells, blister packs, and trays.
Preforms
Production scrap and defective injection-molded preforms.
Mixed Plastics
Capable of separating PP/PE caps and labels from the PET stream.
What is the guaranteed purity?
Our hot-wash systems achieve <50ppm PVC and <100ppm impurities, making the flakes suitable for fiber or bottle-to-bottle applications (with further SSP).
How are labels removed?

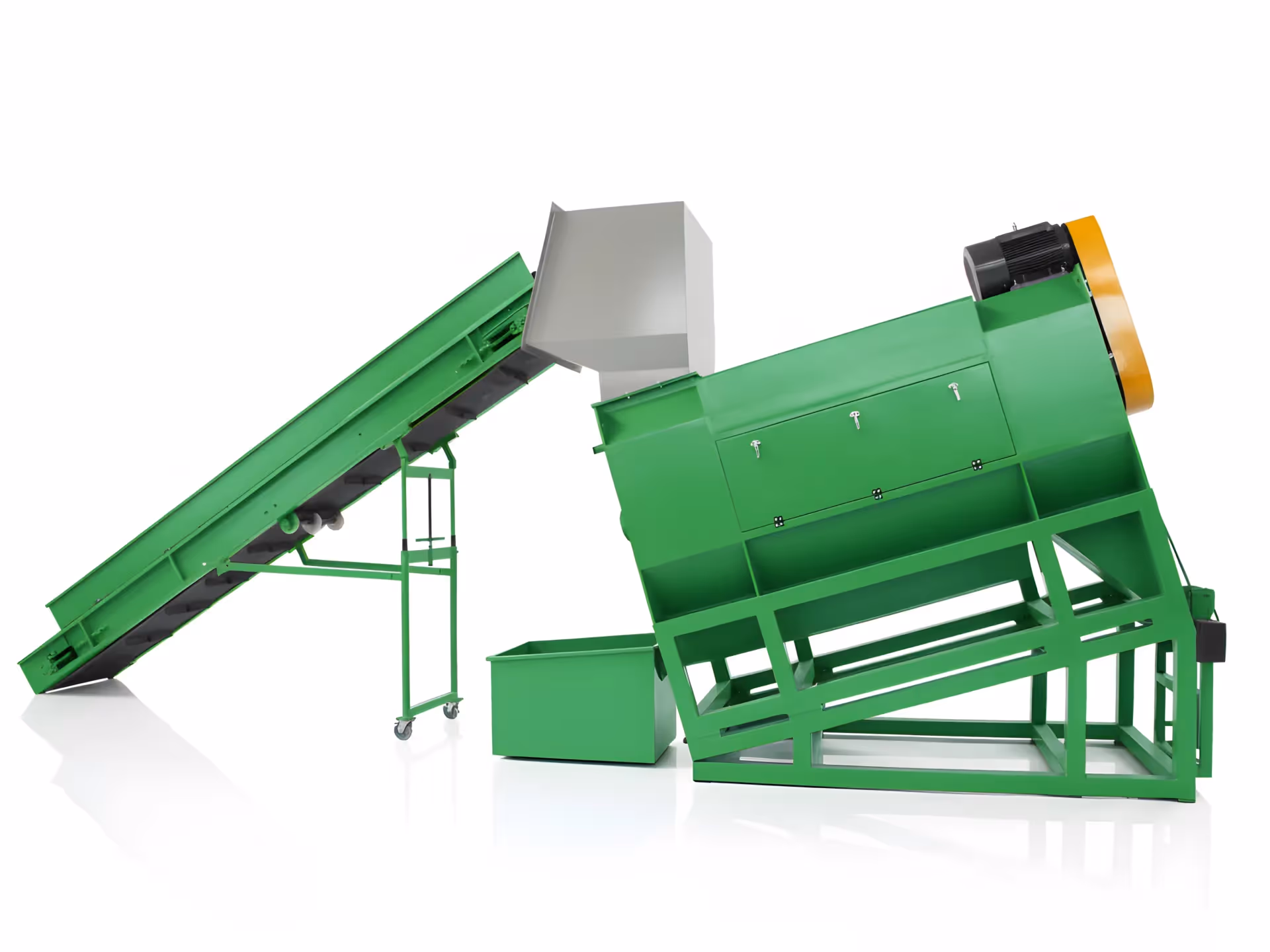

We use a combination of mechanical Wet Label Removers (for paper) and Zig-Zag Air Classifiers (for light plastic labels) to ensure high purity.
Is the water system closed-loop?
Yes. The system includes a filtration and treatment unit to recirculate water, minimizing fresh water intake.
Can it handle baled bottles?
Yes, the line starts with an automated De-baler and Trommel to break bales and remove loose dirt before the Crusher.
